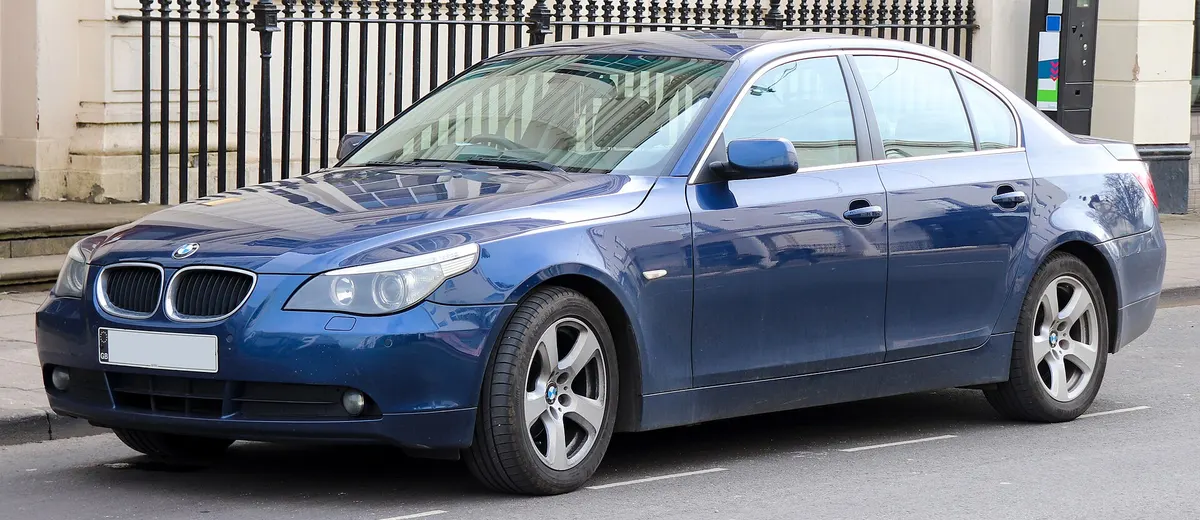

BMW 5 Series 2003–2010Common problems, reliability & repair costs

Symptoms: Blue smoke from the exhaust at cold start or after sitting at idle, steadily climbing oil consumption (a quart every 500–1,000 miles is common), fouled spark plugs. Gets worse with age regardless of maintenance — the seal material itself hardens and cracks.

Fix: Full valve stem seal replacement — a huge labor job on this engine, historically quoted at $5,000+ at dealers. Specialty tooling (AGA's kit) lets good independents do it without pulling the heads, which is what keeps the job in the $3,500–$7,000 range instead of engine-out money. There is no cheap version of this fix; additives and thicker oil only slow it down.

Sources: BMW Tuning — N62 common problems, Bimmerfest — N62 valve stem seals owner discussion

Symptoms: Oil seeping from the front of the engine behind the alternator (burning-oil smell, drips on the ground); coolant loss with drips near the bellhousing at the rear of the engine from the transfer pipe O-rings in the engine valley.

Fix: The alternator bracket gasket itself costs almost nothing but dealers quote $1,200–$1,600 because of access; independents typically land lower. The valley coolant pipe is worse — the factory fix means major disassembly, though aftermarket collapsible/telescoping pipe kits let a good shop do it without splitting the engine, keeping it in the $1,500–$3,500 range.

Sources: 5Series.net — N62 alternator bracket gasket DIY, Pelican Parts — N62 coolant pipe replacement

Symptoms: Long cranking before start, sudden loss of power into limp mode ('Engine Malfunction' warning), rough running. Can happen at speed, which is why regulators got involved.

Fix: HPFP replacement. BMW recalled roughly 130,000 N54 cars (including the 2008–2010 535i) in October 2010 and extended the pump warranty; those coverages are long expired, so today it's a paid repair. Check the VIN for open recall completion before buying, and treat a car on its original pump as due.

Sources: Bimmerfest — 130,000 N54 cars recalled for HPFP, BimmerFile — BMW NA voluntary N54 recall announcement

Symptoms: Injectors: misfires, rough idle, check-engine light — the piezo injectors went through 10+ revisions and early-index units fail repeatedly. Wastegate: a metallic rattle or clatter when you lift off the throttle after acceleration, eventually boost-control faults.

Fix: Failed injectors get replaced with index-12 units (a few hundred dollars each, plus coding); BMW extended the wastegate-rattle warranty to 8 years/82,000 miles at the time, but that's expired, and a proper fix for bad wastegates means rebuilt or new turbos at $2,500–$4,500 installed. Many owners live with mild rattle for years — go in with eyes open.

Sources: FCP Euro — definitive N54 engine guide, BMW Tuning — 8 most common N54 problems

Symptoms: Usually none until it quits: sudden overheat warning, sometimes a stored fault first. The failure is electronic and gives little notice. An overheated aluminum/magnesium BMW engine is a totaled engine, which is what makes this pump a big deal.

Fix: Replace the electric water pump and thermostat together (they're a pair, and the labor overlaps). Independents charge roughly $700–$1,300; dealers more. Smart owners do it preventively around 60k–80k miles rather than gambling.

Sources: Bimmerfest — E60 electric water pump failures, Pelican Parts — E60 water pump and thermostat replacement

Symptoms: 'Active Steering malfunction' warnings (often the steering angle sensor, low battery voltage, or the module itself), iDrive screen pixel failures and freezes, and flickering or dead rear lamps from degraded taillight connector contacts — the taillight issue and a PCV valve heater short (fire risk) were both formal NHTSA recalls on 2008–2010 cars.

Fix: Triage with a proper BMW scan before throwing parts. Taillight bulb carriers and the PCV heater were recall items — check the VIN for free fixes first. Active steering repairs range from a sensor cleaning/recalibration ($200–$400) to a replacement module coded to the car ($1,000+). A weak battery causes a surprising share of E60 electronic complaints; test it first.

Sources: 5Series.net — active steering malfunction (545i), Cars.com — recall alert, 2008–2010 528i/535i/550i taillights, NHTSA — 2008 BMW 5 Series recalls and complaints

Tools: Socket set incl. E-Torx sockets, Floor jack + jack stands (work from below), Coolant drain pan, BMW-capable scan tool or app to run the electric bleed procedure, BMW blue coolant + distilled water

1. With the engine cold, raise and support the car, remove the belly pan, and drain the coolant from the radiator petcock.
2. Unplug the pump connector, disconnect the coolant hoses at the pump and thermostat, and unbolt the pump from its bracket (E-Torx bolts, tight access behind the front axle carrier on AWD cars).
3. Install the new pump and thermostat with new O-rings; never reuse the old ones.
4. Refill with BMW-spec coolant mixed 50/50 with distilled water.
5. Run the electric bleed procedure (ignition on, engine off, heat on max, hold the accelerator ~10 seconds until the pump cycles — or trigger it via scan tool) and top off as the level drops.
6. Test drive, confirm no overheat warning, and recheck the level cold the next day.

Tools: Socket set + breaker bar (tensioner release), Belt routing photo before removal

1. Remove the intake ducting and fan shroud pieces needed to see the full belt run, and photograph the routing.
2. Rotate the tensioner to release belt tension and slip the belt off.
3. Spin the tensioner and idler pulleys by hand — any roughness or wobble, replace them while you're in there (a shredded belt on these engines can get pulled into the front crank seal, a known and expensive E60 failure).
4. Route the new belt per your photo, release the tensioner onto it, and confirm the belt sits centered on every pulley.
5. Start the engine and watch the belt run for a minute before reassembling.

Tools: Screwdriver / small socket for housing screws

1. The cabin microfilter sits under the cowl panel at the base of the windshield: release the fasteners, lift the cover, and slide the old filter out.
2. Insert the new microfilter with the airflow arrow pointing the right way and refit the cowl cover.
3. For the engine filter, unclip/unscrew the airbox lid, swap the panel filter, and make sure the lid seals fully — an unsealed airbox sets false lean codes on these.
