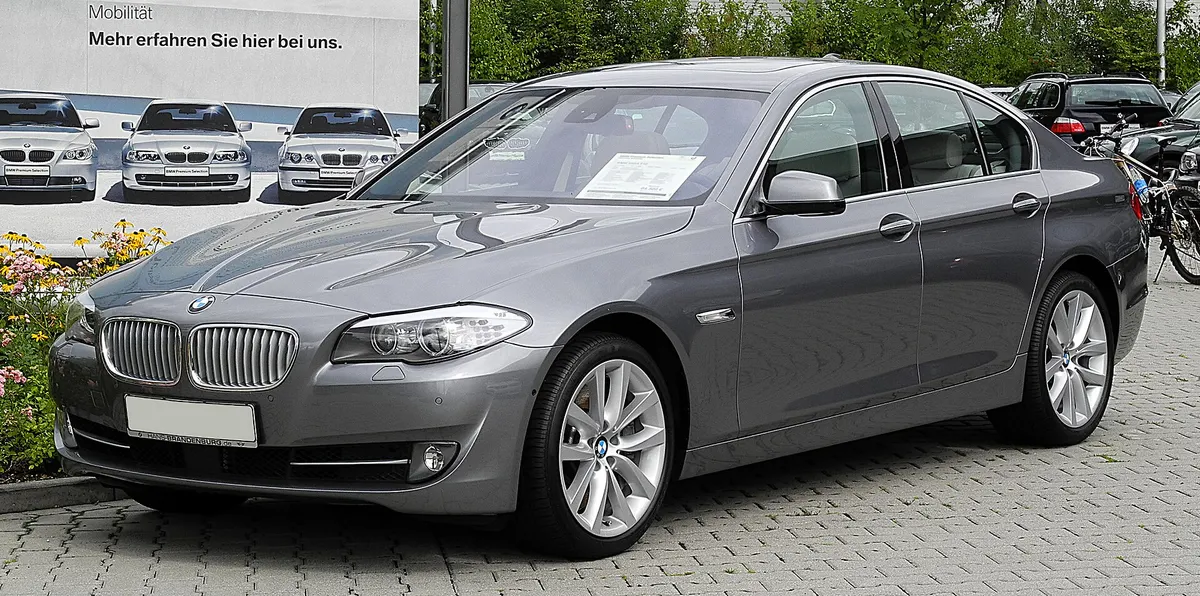

BMW 5 Series 2011–2017Common problems, reliability & repair costs

Symptoms: A rattle or high-pitched whine at cold start and between roughly 1,500–2,500 rpm, sometimes a 'Drivetrain Malfunction' warning or misfires. The plastic chain guides crack and shed; if the chain skips or breaks, valves and pistons collide and the engine can be destroyed.

Fix: Replace the timing chain, guides, tensioner, and oil pump drive chain with updated parts. BMW settled a class action over the N20/N26 chain; eligible US owners were reimbursed (caps reported around $3,000 for the chain module and up to $7,500 for a destroyed engine) when work was done at a BMW center. Out of warranty/eligibility, it's an independent-shop job.

Sources: Top Class Actions — BMW Timing Chain Settlement, NHTSA — 2013 BMW 528i complaints

Symptoms: Burning oil — often a quart every few hundred to a thousand miles — sometimes with blue smoke on startup or under load, fouled plugs, and frequent low-oil warnings. The 'hot-V' turbo layout cooks the valve stem seals until they harden and leak oil into the cylinders.

Fix: Replace all valve stem seals (heads stay on, but it's labor-intensive). BMW's Customer Care Package (CCP) addressed consumption and battery drain on affected VINs and checked timing chains, but did NOT automatically replace valve stem seals — so a car needs BOTH a CCP record and a documented seal job to be in good shape. BMW also settled a class action over N63 oil consumption.

Sources: BimmerLife — BMW Settles N63 V8 Oil Consumption Lawsuit, MINHS Automotive — BMW N63 Valve Stem Seals Repair

Symptoms: Burning-oil smell, oil weeping down the side and back of the engine, drips on the driveway. On the I6 (N55), a neglected oil filter housing leak can drip onto the serpentine belt and crank seal, and a shredded belt drawn into the front cover turns a cheap gasket job into a major repair.

Fix: Replace the oil filter housing gasket and/or valve cover gasket. Often done together since the labor overlaps. Catch it early — the expensive failure mode is letting it ruin the belt and crank seal.

Sources: FCP Euro — Leaky Oil Filter Housing on N51/N52/N54/N55, Southside Euro — Common BMW 535i F10 Problems

Symptoms: Overheating with little or no warning, a coolant/temperature warning, or limp mode. BMW's electric water pumps fail electronically and can quit suddenly with no leak or noise first.

Fix: Replace the electric water pump, almost always with the thermostat at the same time since the labor overlaps. Treat it as scheduled maintenance on a high-mileage I6 rather than waiting for it to strand you.

Sources: BMWTuning.co — N55 Engine Problems, Southside Euro — Common BMW 535i F10 Problems

Symptoms: Hard or long cranking (especially cold), rough idle, hesitation, stumbling under load, stalling, and sometimes a check-engine light with fuel-pressure or misfire codes.

Fix: Replace the failed high-pressure fuel pump; injectors are diagnosed and replaced individually as needed. Direct-injection BMWs of this era are known for both; a good scan tool pinpoints which part is at fault.

Sources: Southside Euro — Common BMW 535i F10 Problems, NHTSA — 2012 BMW 535i complaints

Symptoms: Harsh or hunting shifts, a shudder, or a small oil leak around the transmission pan or mechatronic sleeve. The ZF 8HP is a strong unit, but BMW's 'lifetime fluid' position leads owners to never service it, which shortens its life.

Fix: Full fluid-and-filter service (the pan and filter are one assembly) every ~60k miles; replace the mechatronic sleeve/bridge seals if they're leaking. Far cheaper than a rebuild, which is why neglecting it is the real mistake.

Sources: BimmerWorld — ZF 8HP Service Kit (F10), Southside Euro — Common BMW 535i F10 Problems

Tools: Metric socket + Torx/E-Torx set, Torque wrench, Coolant drain pan + oil drain pan, Pick set for the old gasket

1. Let the engine cool, then partially drain coolant (the oil cooler shares the housing) and have an oil drain pan ready.
2. Remove the intake/charge-pipe and any brackets blocking access to the oil filter housing.
3. Unbolt the housing, noting bolt locations and lengths; carefully separate it from the block.
4. Clean both mating surfaces completely and remove every trace of the old gasket(s).
5. Fit the new oil filter housing gasket (and oil cooler gasket), reinstall the housing, and torque the bolts in sequence to spec.
6. Refill coolant and top off oil, run the engine, and check for leaks and proper temperature.

Tools: Torx/E-Torx sockets, Fluid transfer pump, Drain pan, BMW scan tool capable of reading transmission fluid temperature

1. Warm the transmission slightly, then remove the underbody panel and place a wide drain pan beneath the pan.
2. Remove the drain plug and let the old fluid drain, then unbolt the pan (filter is integrated) and let the rest drain.
3. Install the new pan/filter assembly with new bolts and torque to spec.
4. Fill through the fill port with the correct ZF fluid until it runs out at the specified fluid temperature (use the scan tool to monitor temp).
5. Install the fill plug, clear any adaptations if needed, and road-test for smooth shifts.

Tools: Torx/flat screwdriver

1. Open the hood and locate the microfilter (cabin filter) housing under the cowl trim; release the clips and lift the cover.
2. Slide out the old cabin filter and insert the new one with the airflow arrow correct, then re-seat the cover.
3. For the engine filter, release the airbox lid clips, drop in the new panel filter, and re-clip the lid.
