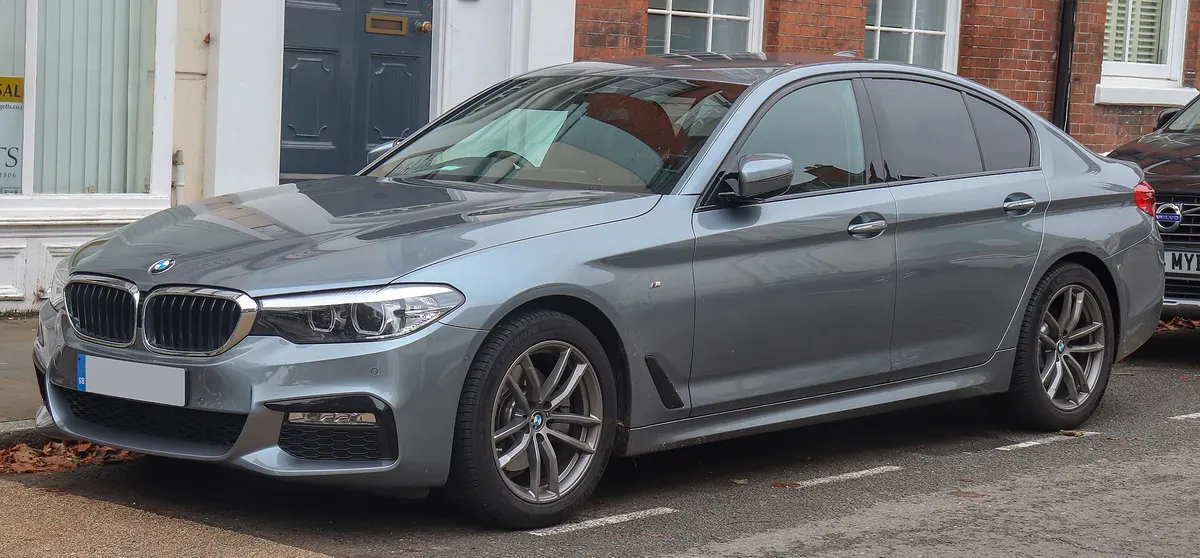

BMW 5 Series 2017–2023Common problems, reliability & repair costs

Symptoms: Slow coolant loss with no puddle, coolant smell, low-coolant warnings; oil seepage or coolant residue visible under the intake manifold where the housing sits. The brittle plastic coolant vent hose next to the housing is often the actual leaker.

Fix: Replace the oil filter housing (or its gasket) and the aged plastic coolant hoses/fittings in the same job — the housing sits under the intake manifold, so labor dominates the bill. Heat cycling embrittles the polycarbonate housing and gaskets; the failure is common enough that a class-action lawsuit names the B46, B48, and B58 specifically. Do the whole corner once rather than chasing one fitting at a time.

Sources: CarComplaints — BMW oil filter housing lawsuit (B46/B48/B58), Bimmerpost G30 forum — coolant leak / oil filter housing on 2017 530i, Motronix — B46/B58 coolant leak (OFHG & vent hose) repair guide

Symptoms: Oil weeping down the side of the engine, burnt-oil smell after driving as it drips onto hot parts, oil film around the valve cover edges. Rarely drips enough to spot on the ground early on.

Fix: Replace the valve cover gasket (on some engines the whole plastic valve cover, since it distorts). Rubber gaskets harden from heat exposure; it's a labor-heavy but routine job on both the four- and six-cylinder. Not urgent at the seep stage, but fix before it fouls the belt or wiring.

Sources: BMWTuning — 5 most common B58 problems (valve cover gasket), Motronix — B46/B58 leak points overview

Symptoms: No warning symptoms — the defect is welding debris left inside battery packs during manufacture, which can short between modules and in rare cases cause a thermal event while charging. BMW told affected owners not to charge until repaired.

Fix: Recall repair: BMW inspects and replaces affected high-voltage battery modules free of charge. Roughly 4,500 US vehicles across BMW/Mini PHEVs were affected. Free, but non-negotiable — run the VIN through NHTSA's recall lookup and require proof of completion before buying any 2020–2021 530e.

Sources: NHTSA recall 20V-601 — high-voltage battery (official SIB), Green Car Reports — BMW expands 2020–2021 PHEV battery recall

Symptoms: Adding oil between changes, blue-gray smoke on startup after sitting, low-oil warnings. The N63TU2/TU3 in the G30 is a big improvement over the 2008–2013 N63 that spawned an oil-consumption lawsuit, and many owners see no issue — but valve stem seals remain the known aging point.

Fix: Mild consumption is managed by monitoring and topping off; the real fix for smoking startups is valve stem seal replacement, a very labor-intensive V8 job. Buy an M550i on its oil-consumption history and records, and price the car accordingly if it's already using oil.

Sources: BimmerLife — updated N63 V8 oil-consumption lawsuit, EuroAutoPro — G30 M550i common problems guide

Symptoms: iDrive screen goes black or shows 'No Signal,' backup camera drops out intermittently, systems that recover after a restart. A weak 12V battery is a common trigger — BMW modules misbehave at marginal voltage. Separately, 2018–2020 cars were recalled for a backup-camera display defect, and some 2020–2022 530i cars for a starter-relay corrosion fire risk.

Fix: Start cheap: software update at the dealer and a load-test of the 12V battery fix most cases (recalls are free). A genuinely dead head unit runs roughly $800–$2,000 to replace, but that's the minority outcome. Verify all recall work by VIN.

Sources: Bimmerpost G30 forum — iDrive screen 'No Signal', BMWBlog — starter-relay corrosion recall (incl. 2020–2022 530i)

Tools: T20/T25 Torx driver, 8mm socket or flathead (airbox clips vary)

1. Unclip or unscrew the airbox lid on the driver's side of the engine bay and lift it enough to slide the panel filter out.
2. Seat the new engine filter with the sealing edge flat, then re-secure the lid.
3. For the cabin filter, open the panel under the glovebox (or behind it, per year) — a few Torx screws — and slide the old filter out.
4. Insert the new cabin filter with the airflow arrow pointing the correct direction and close the panel.

Tools: 10mm and 13mm sockets, Battery registration tool or OBD app (Bimmerlink/Carly) , Memory saver (optional)

1. The battery lives in the trunk under the floor panel on the right side — remove the trim and the hold-down bracket.
2. Disconnect negative first, then positive, then the vent tube; lift the battery out (it's heavy).
3. Install a same-spec AGM battery, reconnect positive then negative, and reattach the vent tube and bracket.
4. Register the new battery to the car with an OBD tool — skipping registration makes the charging system overcharge the new battery and shortens its life.
5. Expect one-time warnings (windows, steering angle) to clear after a short drive.

Tools: E-Torx and standard socket set, Torque wrench (small increments — plastic cover), Plastic trim tools, Shop towels and brake cleaner

1. Remove the engine cover and disconnect the ignition coils and any harnesses routed over the valve cover.
2. Unbolt the valve cover in the reverse of the torque sequence and lift it off; note the bolt grommets.
3. Clean the head's sealing surface completely — old baked gasket material is why redone jobs leak.
4. Fit the new gasket (and spark plug tube seals) to the cover, set it in place, and torque in sequence to spec — the cover is plastic and cracks if overtightened.
5. Reinstall coils and covers, then check for leaks after a heat cycle.
