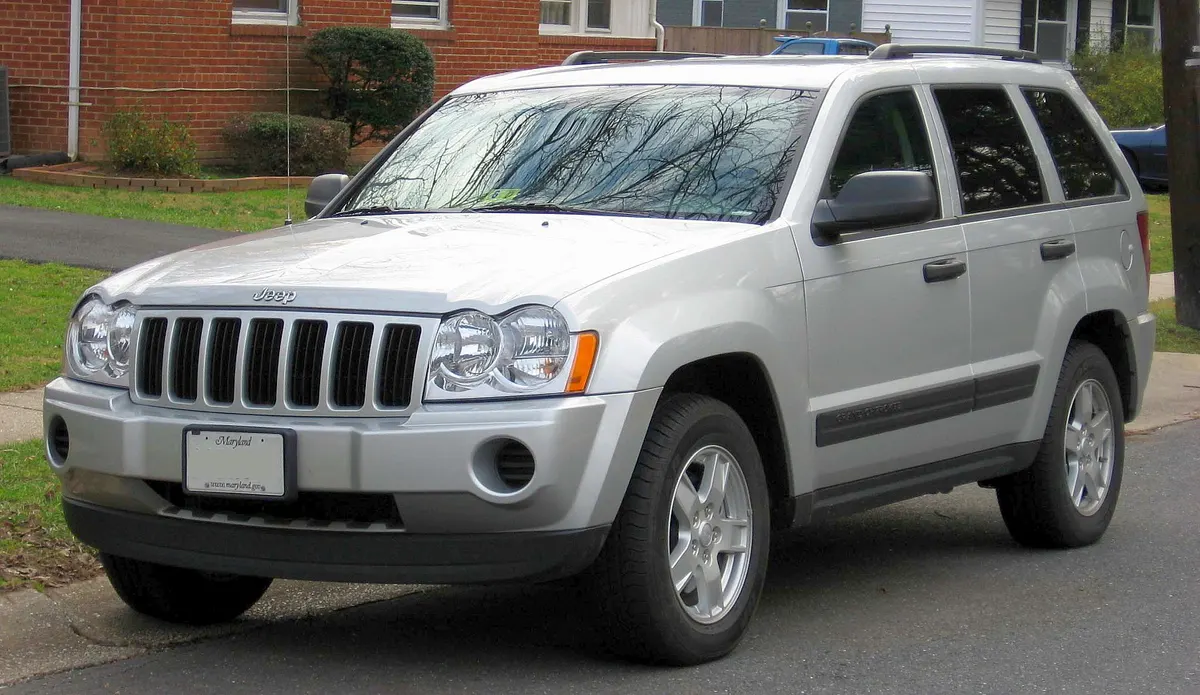

Jeep Grand Cherokee 2005–2010Common problems, reliability & repair costs

Symptoms: Engine cuts out when the driver's knee bumps the key, or the ignition springs from RUN toward ACC on its own. Power steering assist, power brakes, and airbags can be lost with it. Covered by recall P41 / NHTSA 14V-438 (ignition switch, 2005–2007) and the WIN wireless-ignition-module recalls (P57 / 14V-567; 10V-200 for 2010).

Fix: Free under recall — a dealer replaces the ignition switch and lock cylinder or the WIN module. Verify completion by VIN before buying; out-of-pocket replacement of a WIN module runs a few hundred dollars if a non-recall unit fails later.

Sources: NHTSA recall 14V-438 (Recall P41, ignition switch), NHTSA recall 14V-567 (Recall P57, WIN module), NHTSA campaign 10V-200 (2010 WIN module)

Symptoms: A metallic tick at idle that doesn't quiet down when warm, progressing to a persistent misfire (P0300-series codes) on one or two cylinders. The MDS cylinder-deactivation lifters lose their roller bearings and wipe the cam lobe.

Fix: Camshaft plus a full set of lifters, done in-chassis at an independent shop; if metal circulated, the price climbs toward a replacement engine. Many owners upgrade to non-MDS lifters during the repair so it doesn't happen twice.

Sources: JeepForum — 5.7 cam/lifter failure explained, Allpar — was the Hemi lifter issue ever fixed?

Symptoms: Often no warning: sudden loud knocking, dead cylinder, bent valve. The hardened valve seats in the aluminum heads work loose after an overheat — sometimes long after — and drop into the cylinder. The engine also sludges up when oil changes are skipped.

Fix: Cylinder head replacement at minimum; a dropped seat usually damages the piston and valve, making a used or reman engine the realistic fix. Prevention is boring but real: keep the cooling system perfect and never drive it hot.

Sources: JeepForum — preventing the 4.7 valve seat issue, JeepForum — avoiding the dropped valve seat problem

Symptoms: Shudder around 35–45 mph under light throttle (torque converter clutch), a long pause before Drive or Reverse engages after sitting overnight (fluid drain-back — Chrysler TSB 21-015-05 covers 2005–2006), and harsh or delayed 3-4 / 4-5 shifts from valve-body wear.

Fix: The cold-engagement issue is fixed with an updated cooler return filter during a normal service. Shudder that persists after fresh fluid usually means a torque converter; valve-body work or a rebuilt unit sits at the top of the range.

Sources: Transmission Repair Cost Guide — Jeep 545RFE problems, JeepForum — 545RFE transmission shudder

Symptoms: Vibration or rumble at highway speed, grinding or popping from up front. The rubber boot on the front driveshaft's rear CV joint splits, slings its grease, and the joint grinds itself apart. A worn front-differential bushing adds wobble to the mix.

Fix: Catch it early and it's a boot-and-grease kit or a CV joint. Once it's been run dry, a replacement front driveshaft is the fix — aftermarket units are reasonable.

Sources: JeepForum — driveline noise, front driveshaft, Quadratec — WK 2005–2010 driveshafts

Symptoms: Rhythmic clicking from behind the dash (sometimes even after shutoff), air stuck on hot or cold, or airflow stuck on one set of vents. The small plastic gears inside the actuators strip.

Fix: The actuator itself is a cheap part. The passenger-side unit is reachable behind the glovebox and is a reasonable DIY; the driver's-side and mode-door units can require major dash disassembly at a shop, which is where the big numbers come from.

Sources: JeepForum — infamous blend door clicking noise, Go-Parts — 2005–2010 Grand Cherokee blend door & evaporator failures

Tools: Phillips and flat screwdrivers, 8mm socket or nut driver, Flashlight

1. Drop the glovebox by squeezing its side stops, and remove the lower dash panel on the passenger side.
2. Locate the clicking actuator on the HVAC housing and unplug its electrical connector.
3. Remove the two or three small screws holding the actuator and pull it off the door shaft.
4. Move the blend door by hand to confirm it swings freely — a jammed door will kill the new actuator too.
5. Index the new actuator onto the shaft, screw it down, plug it in, and cycle the temperature from full hot to full cold to verify.

Tools: Floor jack + jack stands or ramps, Socket set + torque wrench, Large drain pan, ATF+4 fluid (6–7 quarts for a pan service)

1. Warm the transmission, then support the vehicle safely and place a wide drain pan under the transmission pan.
2. Loosen the pan bolts, drain, and drop the pan; clean the pan and magnet.
3. Replace the main spin-on style filter AND the cooler return filter — the updated return filter is the fix for cold delayed engagement.
4. Reinstall the pan with a new gasket and torque the bolts evenly.
5. Refill with ATF+4 only, then check the level per the dipstick procedure with the fluid hot and in Neutral.

Tools: 5/8" spark plug socket + extensions, Ratchet + torque wrench, 10mm socket (coil bolts), Dielectric grease

1. Work on a cold engine. Remove the engine cover and unplug the first coil pack.
2. Unbolt the coil — each coil on the Hemi covers TWO plugs, so both come out from under it.
3. Blow debris out of the plug wells, then remove and replace both plugs, torqued to spec (don't overtighten into the aluminum heads).
4. Dab dielectric grease in the coil boots, reinstall the coil, and repeat across all eight coils / sixteen plugs.
5. Start it and confirm smooth idle with no misfire codes.
