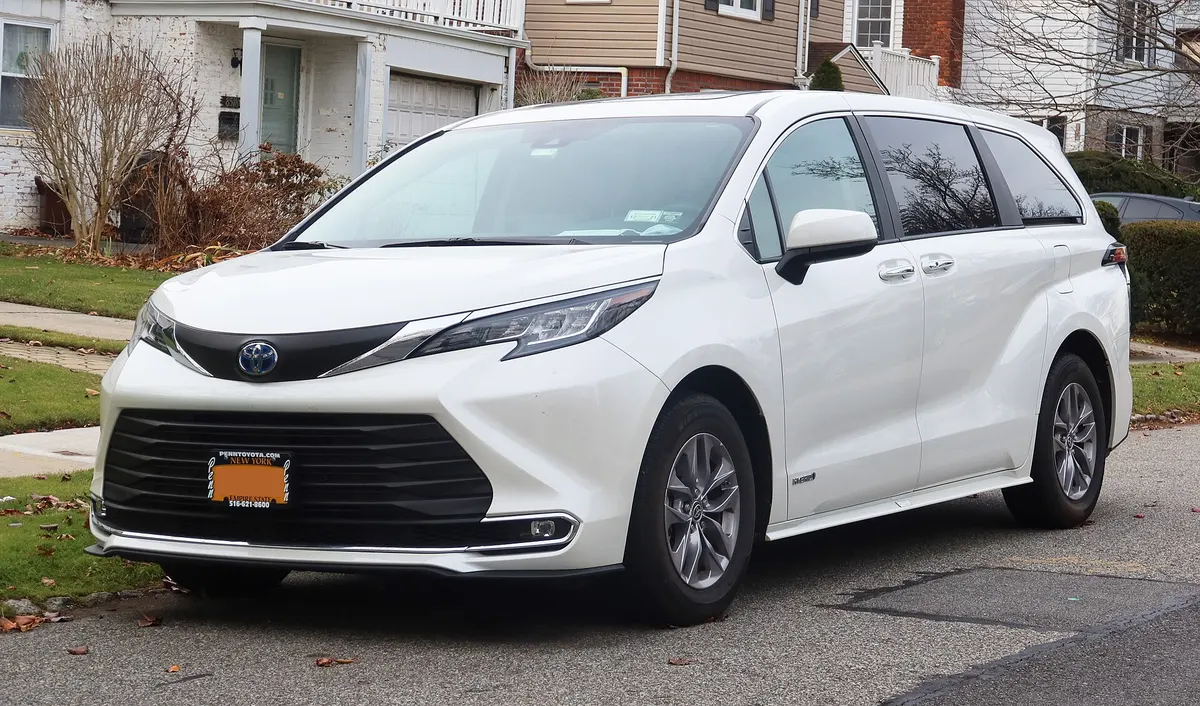

Toyota Sienna 2021–2026Common problems, reliability & repair costs

Symptoms: Braking lightly to a stop under ~30 mph, the pedal momentarily feels like it lets go and the van creeps or lunges forward before braking resumes. Intermittent, no warning light, no stored code. Brakes were the #1 NHTSA complaint category on the 2021 (70 of 188 complaints) and 2022 (46 of 128).

Fix: No recall has been issued, and dealers frequently respond that the vehicle is 'operating as designed' — the behavior lives in the handoff between regenerative and friction braking. Some owners report improvement after dealer software updates; a plaintiffs' firm opened an investigation into 2021–2022 Sienna braking in late 2022. Complaint volume falls sharply on 2023+ vans. Test-drive for it specifically; there is no parts fix to budget for.

Sources: CarComplaints — 2021 Sienna service brakes complaints (NHTSA), Migliaccio & Rathod — 2021–2022 Sienna brake defect investigation, SiennaChat — 'Brakes feel like they release briefly', SiennaChat — hybrid Sienna brake issue thread

Symptoms: AM radio static is the early tell; later, a hybrid-system malfunction warning or a van that won't ready-on. Cause is corrosion at the connector where the floor-under high-voltage harness meets the rear motor-generator — the connector sits under the van in the splash zone.

Fix: Toyota Customer Support Program 22TE09 (originally Dec 2022, expanded through Sept 2025) covers the HV floor-under harness and rear traction motor cable on roughly 109,400 2021–2024 Sienna HVs — 8 years/100k miles, expanded to 10 years/unlimited miles conditional on a preventive-care campaign Toyota had not yet issued for the Sienna as of the Sept 2025 dealer letter. Harness replacement is a high-voltage job for a hybrid-qualified tech, not a DIY. Before buying any AWD van, have a dealer pull the 22TE09 status by VIN.

Sources: Toyota CSP 22TE09 dealer letter (updated 09/2025) — NHTSA-filed PDF, Go-Parts garage guide — 2021–2025 Sienna HV cable corrosion explained

Symptoms: Dead 12V after the van sits — sometimes overnight, reliably after a week — so nothing powers up: no doors, no dash, no ready light. Documented parasitic draws include the Data Communication Module failing to sleep and faulty kick sensors on the doors/liftgate; owners also point out the factory 12V (a small LN2/H5 enhanced flooded battery) has little reserve to begin with.

Fix: Dealer software/firmware updates address the known draws (owners cite T-SB-0071-22; Toyota also issued tech tip T-TT-0687-22 for diagnosing discharged batteries). A worn battery is a routine replacement — RepairPal puts the job around $388–$408, independent quotes start near $300 — and many owners simply keep a maintainer on vans that sit. Get the software done under warranty first or the new battery dies the same death.

Sources: SiennaChat — 2022 battery drains almost every night, SiennaChat — dead 12V and T-SB-0071-22 thread, CarComplaints — 2021 Sienna TSB index (T-TT-0687-22 battery diagnosis), RepairPal — Sienna battery replacement cost

Symptoms: Door beeps when commanded but doesn't move, PSD controls grey out in the settings menu, doors stop responding to fob/dash/handle, or a door that was opened manually refuses to resume power operation. Often both doors at once — which points to electronics or a low 12V rather than mechanical wear.

Fix: This generation has no door recall and no cable-snapping epidemic like the 2011–2018 vans — reported failures are mostly electrical: switches, latch motors, software, and low-voltage gremlins (a weak 12V battery mimics door failure). Some cases clear with a battery disconnect or dealer reset; genuine hardware failures are a per-door repair. Cycle every door from every switch before you buy.

Sources: SiennaChat — power sliding door not working (2022), SiennaChat — Gen-4 sliding door issues thread

Symptoms: Pump nozzle clicks off early and repeatedly; total fill comes up well short of the 18-gallon rating; range and low-fuel light behave as if the tank were smaller than advertised.

Fix: This is the same underfill condition that hit Toyota's other hybrids of this era hard enough to get fuel-tank replacement TSBs — e.g. T-SB-0008-22 for the Highlander Hybrid, which swaps the tank, gauge bracket, and sender under the 3yr/36k basic warranty. On the Sienna it shows up in owner threads but NHTSA fuel-system complaints are few (3 on 2021), and the 2021 Sienna TSB index shows no Sienna-specific refueling bulletin. If a van shows the symptom, have the dealer check for an applicable bulletin rather than paying out of pocket.

Sources: SiennaChat — 2021 Sienna range / short-fill thread, Toyota T-SB-0008-22 — Vehicle Refueling Performance (Highlander HV; NHTSA-hosted), CarComplaints — 2021 Toyota Sienna complaint breakdown

Tools: None (hands only; a small flathead helps on airbox clips)

1. Unclip the airbox lid in the engine bay, swing it up, and lift out the old panel filter.
2. Seat the new engine filter (17801-77050 or equivalent) with the rubber edge flat all the way around, and re-clip the lid.
3. Open the glovebox, squeeze the sides to release the stops, and let it swing down to expose the cabin filter cover.
4. Slide the cover off, pull the old cabin filter straight out, and insert the new one with the airflow arrow pointing the direction marked on the housing.
5. Re-hang the glovebox and run the fan on high to confirm normal airflow.

Tools: Floor jack + jack stands, Lug wrench / breaker bar, Socket set (14–17mm) and a caliper piston tool or large C-clamp, Torque wrench, Brake cleaner and caliper grease

1. Loosen the front lugs, jack the van, set it on stands, and remove the wheels. (Regen braking means these pads often outlast expectations — measure before you buy parts.)
2. Unbolt the caliper and hang it from the strut spring with a hook — never by the hose — then slide out the old pads.
3. Compress the caliper piston slowly with the old pad and a clamp, watching the reservoir level.
4. Install the new pads with greased shims and slide pins, reassemble, and torque caliper bolts and lugs to spec.
5. Pump the pedal until firm BEFORE moving the van, then bed the pads with several moderate stops from 35 mph.

Tools: Multimeter, Battery maintainer/tender, Socket set (10mm) for the hold-down and terminals

1. Know the layout first: on this generation the 12V battery is NOT under the hood — it lives inside the cabin (check your owner's manual for the exact access panel). The marked jump/charge terminals are in the underhood fuse box.
2. With the van off overnight, measure resting voltage at the jump terminals: 12.5V+ is healthy, low 12s is tired, under 12V is why your doors won't open.
3. If the van sits for days at a time, connect a maintainer to the underhood jump terminals — this is the standard owner fix for the drain issue.
4. Have the dealer apply the battery-drain software updates (DCM/kick-sensor TSBs) under warranty — a new battery without the software fix just dies again.
5. When replacing, match the original spec: an enhanced flooded (EFB) or AGM battery in the LN2/H5 case size. Don't downgrade to a bargain flooded battery.
