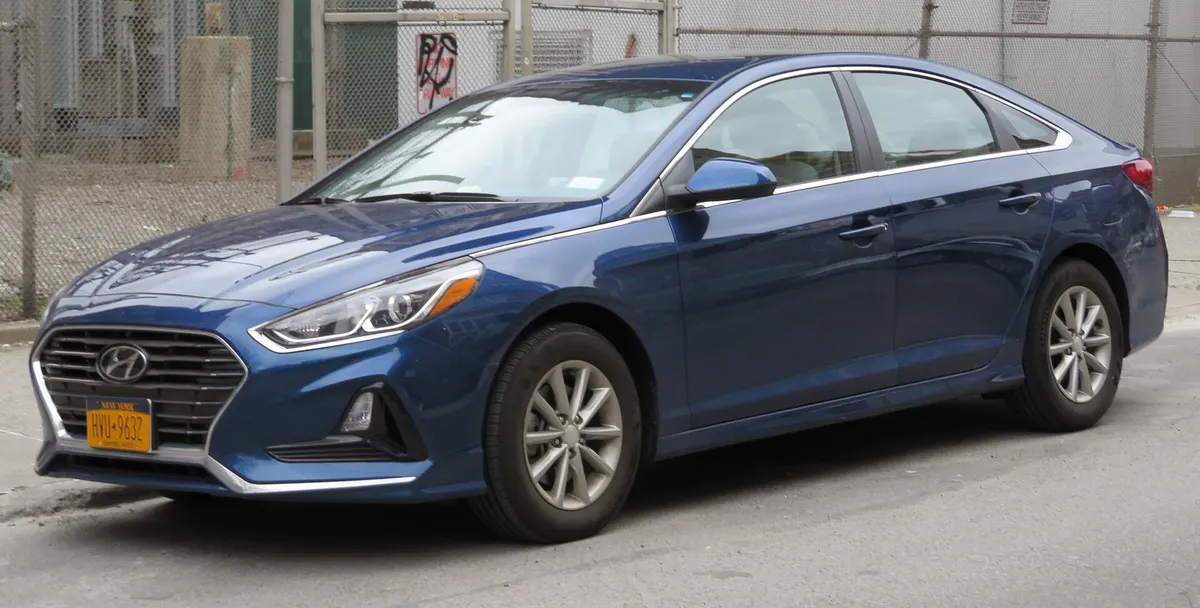

Hyundai Sonata 2018–2019Common problems, reliability & repair costs

Symptoms: Deep knocking from the bottom end (worst at cold start), check-engine light with DTC P1326 after the KSDS update, reduced-power engine-protection mode, sudden stall, or seizure. Root cause: connecting-rod bearings wear and shed metal into the oil. Engine-related complaints still dominate these years' NHTSA files — 206 of the 2018 model year's 366 complaints are engine-coded — just at far lower volume than 2011–2017.

Fix: Short-block or complete engine replacement. The Theta II class-action settlement (final approval 2021) covers 2011–2019 Sonatas with the 2.4 GDI and 2.0T — these facelift cars are the last model years in the class — giving a LIFETIME short-block warranty (block, crank, rods, bearings, pistons) for original and subsequent owners, conditioned on the Campaign 953 KSDS software being installed. The KSDS software was extended to 2019 Sonatas in October 2019. If the failure qualifies, Hyundai replaces the engine free; the out-of-pocket range above is for denied claims (missing maintenance records, non-OEM engine, damage judged unrelated).

Sources: Hyundai Theta Engine Settlement (official site — class includes 2011–2019 Sonata), Hyundai Service Campaign 953 dealer best practice, Oct 2019 — adds 2019MY; lists 2015–2019 Sonata (LF) 2.4/2.0T, NHTSA — 2018 Hyundai Sonata complaints

Symptoms: Oil level drops a quart every 1,000–2,000 miles with no external leak and little visible smoke, usually caught when a low-oil warning appears between changes. Owner reports on these exact years include a 2018 burning two quarts per 1,000 miles (engine eventually replaced at 65k) and a 2019 at a quart per ~300 miles. Oil consumption appears in 55 of the 2018 model year's 366 NHTSA complaint narratives and 29 of the 2019's 155.

Fix: Piston-ring wear is the usual culprit; the real fix is rings or a replacement engine. Hyundai's path is a dealer-documented oil-consumption test, and a later class action over Hyundai/Kia oil consumption named the 2018 Sonata among affected vehicles. Pure oil-burning without a bearing failure is frequently denied under the Theta settlement's lifetime warranty — which targets the bearing/seizure failure — so owners either escalate through the consumption-test route or live with monthly dipstick checks. Running low is exactly what kills the rod bearings the warranty does cover, so check the level every 1,000 miles and keep every receipt.

Sources: Hyundai Forums — 2019 Sonata burning 1 quart per ~500 km, Jalopnik — Hyundai/Kia oil-consumption class action (2018 Sonata among named vehicles), NHTSA — 2019 Hyundai Sonata complaints

Symptoms: Intermittent reduced engine power, hard starting or a crank/no-start, and DTC P1233 (low-pressure fuel system) stored in the ECM — caused by an internally leaking fuel pump filter housing in the tank-mounted low-pressure pump module. Fuel-pump failures show up in these years' NHTSA complaints, including cars told of the extended coverage at the dealer.

Fix: This is a warranty extension, not a recall: under TSB 23-FL-004H (June 2023), Hyundai extended coverage for the fuel pump filter assembly on 2015–2019 Sonatas built May 2014–September 2019 to 15 years / 150,000 miles, valid for original and subsequent owners. A symptomatic car gets the low-pressure pump inspected and the fuel filter assembly replaced free. The $0 low end is real for nearly every car on the road today; the high end reflects out-of-scope replacements — RepairPal puts a full Sonata fuel-pump replacement at up to roughly $1,800–$2,255 with OEM parts, and independent shops with aftermarket pump modules come in well under that.

Sources: Hyundai warranty extension — fuel pump filter, TSB 23-FL-004H dealer best practice (NHTSA copy), Hyundai Forums — 15-yr/150,000-mile fuel pump warranty letter, RepairPal — Hyundai Sonata fuel pump replacement cost

Symptoms: Shudder and hesitation launching from a stop, delayed engagement rolling into throttle at low speed, rubber-band feel on uphill starts — worse when the clutch is hot. Same dry-clutch behavior documented on the 2015–2017 Eco; the facelift changed nothing mechanical here.

Fix: Start with the TCU software: Hyundai's TSB 21-AT-014H lays out a GDS-M judder inspection, revised TCU logic, and — if judder is confirmed — double-clutch replacement (part 41200-2D220), and it explicitly covers 2015–2018 Sonata 1.6T. A reflash is cheap and helps many cars; persistent judder means the clutch pack. Some of the behavior is inherent to a dry DCT, so test-drive before buying rather than planning to fix it after.

Sources: Hyundai TSB 21-AT-014H — DCT judder detection and TCU update, Sonata (LF) 1.6T (NHTSA copy), Hyundai Forums — Sonata 1.6 Eco DCT problems

Symptoms: Sudden loss of drive power while running in EV mode. The high-voltage battery's Voltage Protection Device (VPD) can activate when it shouldn't, shutting down propulsion.

Fix: Recall 175 (NHTSA 18V-166) covers 2016–2018 Sonata Plug-in Hybrids: dealers remove the VPD switch and install a new Battery Management System with an overvoltage protection device, free. Verify closure by VIN on any PHEV. The standard Hybrid is not part of this recall — its only recall on these years is the 2016–2018 trunk-latch item shared with the 2017–2018 gas car.

Sources: NHTSA recall data — 2018 Sonata Plug-in Hybrid (18V-166 / Hyundai 175), NHTSA recall data — 2018 Sonata / Sonata Hybrid trunk latch (21V-619 / Hyundai 208)

Tools: None (hand-release clips); small screwdriver optional

1. Unclip the airbox lid in the engine bay, lift it, and swap in the new engine air filter with the pleats facing the same way.
2. Open the glovebox, squeeze the sides to release the stops, and let it swing down.
3. Slide the cabin filter cover off, pull the old filter, and insert the new one with the airflow arrow pointing down.
4. Reset the glovebox stops and clip the airbox shut.

Tools: 3/8" ratchet + extensions, 14mm thin-wall spark plug socket, 10mm socket (coil bolts), Torque wrench

1. Remove the engine cover and unplug the four ignition coil connectors.
2. Remove each coil hold-down bolt and pull the coils straight up out of the plug wells.
3. Blow or vacuum debris out of the wells before removing the old plugs.
4. Remove the old plugs, thread the new iridium plugs in by hand, then torque to spec (do NOT overtighten in the aluminum head).
5. Reinstall coils and connectors, refit the cover, and confirm a smooth idle.

Tools: Floor jack + jack stands, Lug wrench / 21mm socket, 14mm socket (caliper guide bolts), C-clamp or piston compressor, Brake grease

1. Jack the front, support on stands, and remove the wheels.
2. Remove the two caliper guide bolts, swing the caliper up, and hang it so the hose isn't stressed.
3. Pull the old pads and shims; compress the piston back with the C-clamp (crack the reservoir cap first).
4. Grease the contact points and slide pins, seat the new pads, and re-bolt the caliper.
5. Repeat on the other side, refit wheels, and pump the pedal firm before moving the car.
